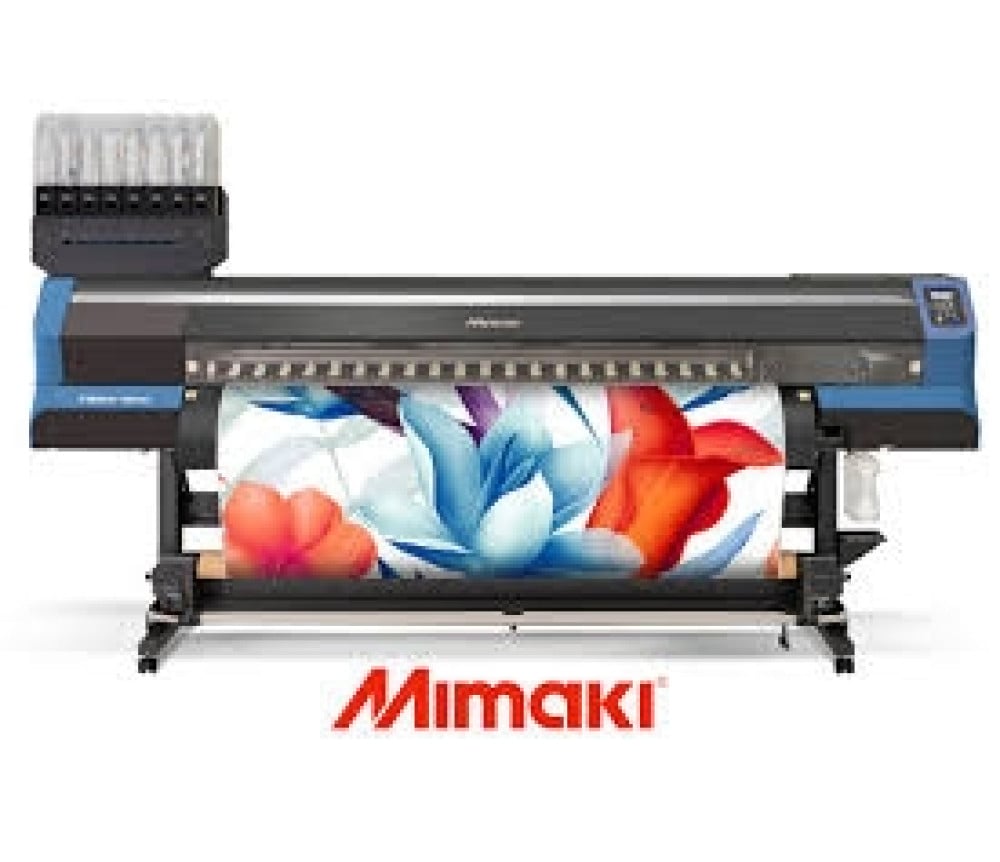

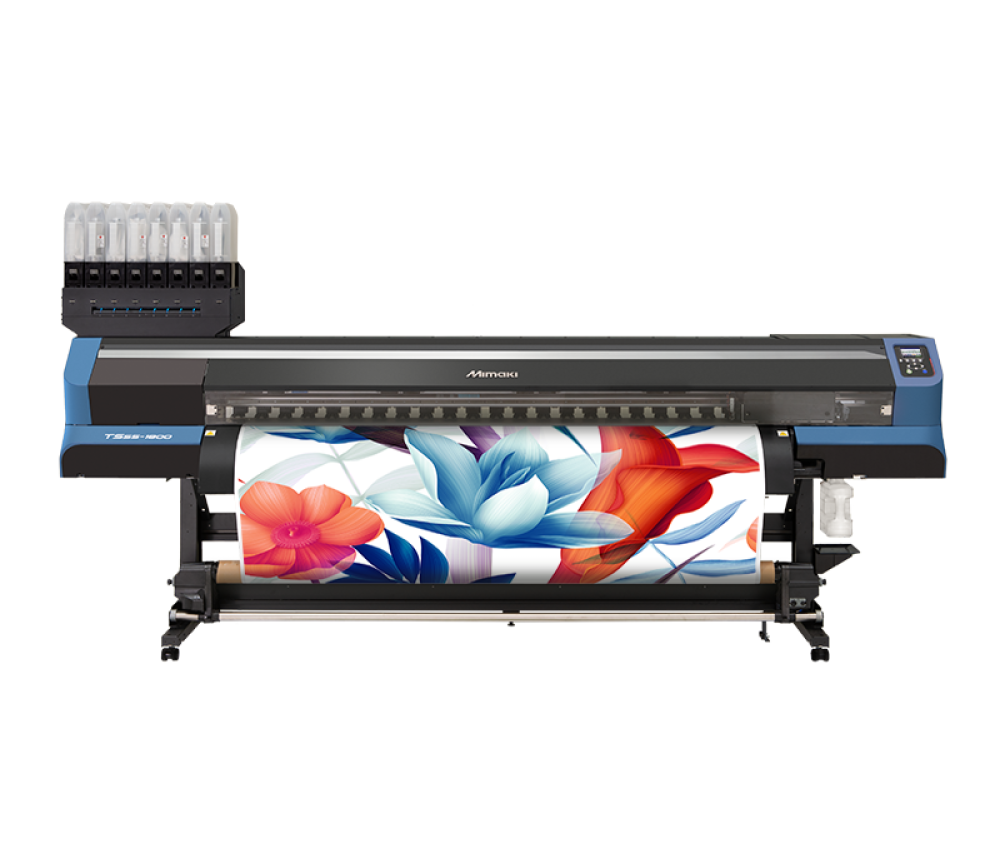

Mimaki TS55-1800 Transfer Printer

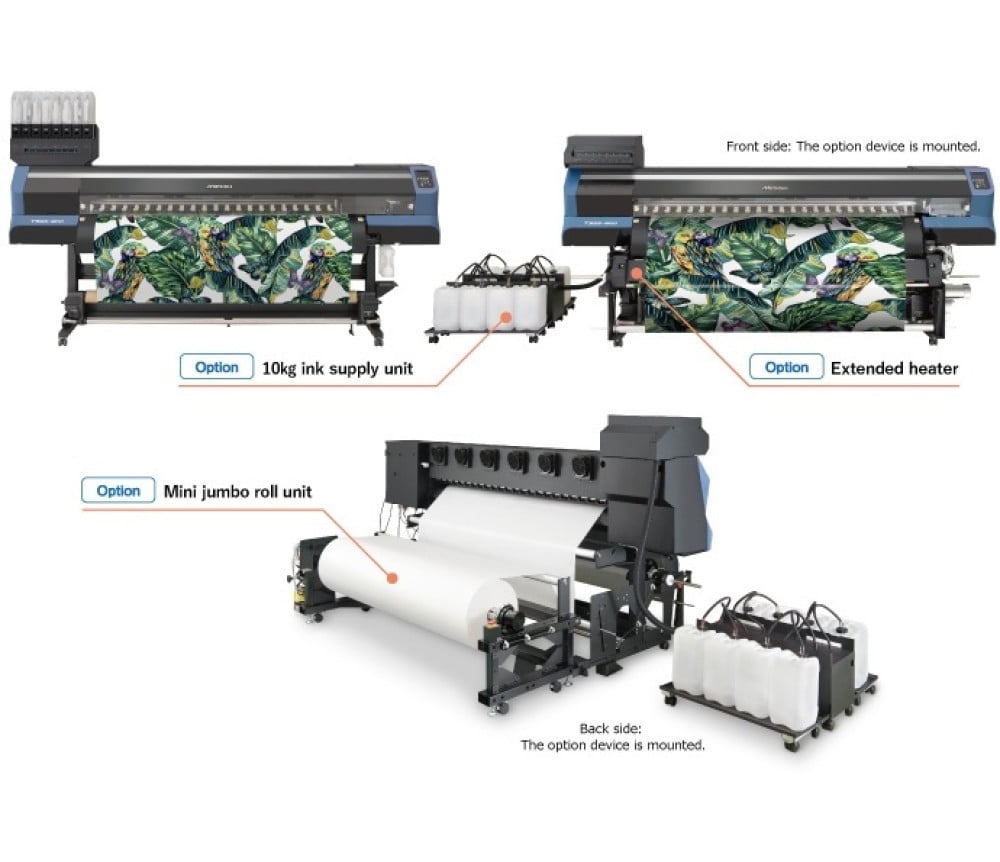

The TS55-1800 is a dye-sublimation transfer paper model, offering new levels of quality and productivity for digital textile printing. This printer keeps running costs low with the mini jumbo roll and 10 kg ink supply units, which allow for unattended continuous printing. A maximum output of up to 1,506 SqFt/Hr can be achieved in four-color mode. New Sb610 inks provide enhanced resolvability to improve print production yields during dye sublimation printing
 TS55-1800 Spec Sheet

 TS55-1800 Product Guide




Looking for Pricing

After 30 years in business, ITNH has strong relationships with manufacturers that allow us to negotiate not just better printer pricing, but superior packages.

Does Where You Buy Your Printer Matter?

Once you purchase a printer, you will be dependent on the reseller for training, service and everything in between. That’s why the reseller you buy your printer from is just as important as the printer itself.

We know how important it is to have a reliable, responsive printing partner. Here's why you should contact us for a quote for your next printer:

  • More Than Just a Reseller
    We’re here for all of your printer needs. Our field technicians and specialists are located all across the country, ready to support you with everything from planning and installation to implementation and support.
  • Unmatched Industry Expertise
    We’ve seen it all in our nearly 30 years of experience and over # printers sold. You can rely on us as your go-to printer partner — from the research and consulting phase to continued service and upgrades. Whatever you need, we’ve got your back.
  • No Surprises
    With ITNH, what you see is what you get. We go the extra mile to set expectations for our customers from the get-go, providing full transparency on costs, capabilities and equipment needs.
  • All-Inclusive Training
    When you partner with us, you have full access to our comprehensive training services, and we’ll do everything possible to ensure that you’re comfortable with your new equipment.
  • Competitive Prices
    As a high-volume reseller with decades-long relationships with printer manufacturers, we’re able to offer our customers the most competitive prices and superior printer packages in the industry.
Mimaki TS55-1800 Applications
  • Commercial Decor
  • Fashion Apparel
  • Flags
  • Home Decor
  • Safety signage
  • Sports Apparel
  • Technical Textiles
Fiber Types
  • Polyester
Fabric Construction Types
  • Knit
  • Non-Woven
  • Woven
Mimaki TS55-1800 Features & Benefits
  • Includes technologies for printing onto thin transfer media without cockling interference
  • 76.3-inch (1,940 mm) print width
  • New Sb610 dye-sublimation inks with improved stability
  • 2L Ink w/optional units:10 kg Ink Supply and Extended Heater
  • Run high-speed with MAPS for smooth images
  • Nozzle Check Unit and Nozzle Recovery System
  • Advanced TxLink4 Lite RIP Software is available as an option
Mimaki TS55-1800 Specifications
Weight 445.0000
Ink Type Sb610 (Bl/M/Y/K/Lbl/Lm/Lk )
Printing Resolutions 480,600,1200 DPI
Max Print Width 76.3"
Max Print Speed
Max Media Weight 99.2 lbs (45 kg)
Connectivity Gigabit Ethernet (1000Bt) and USB 2.0
Power Supply Single-phase AC 100-120V (AC 220-240V)
Operational Environment Temperature Temp: 68˚ – 86˚ F (20˚ – 30˚ C) 35-65% RH (non-condensing)
Overall Length 29"
Overall Width 127.5"
Dimensions (W x D x H) 127.5 x 28 x 73.1 inches (3,240 x 713 x 1,857 mm))
Why We Recommend Mimaki TS55-1800
  • Dedicated transfer paper printer with a 76.3-inch (1940 mm) print width
  • New Sb610 dye-sublimation inks with improved stability for producing vibrant colors
  • Print speeds of up to 1506 SqFt/hr (140 SqM/hr)
  • Variable dot printing for exceptional image quality
  • MAPS for smooth images
  • On-demand piezo head – 4 heads (2 staggered, 2 in-line)
  • Nozzle Check Unit and Nozzle Recovery System
  • Advanced TxLink4 Lite RIP Software is available as an option
