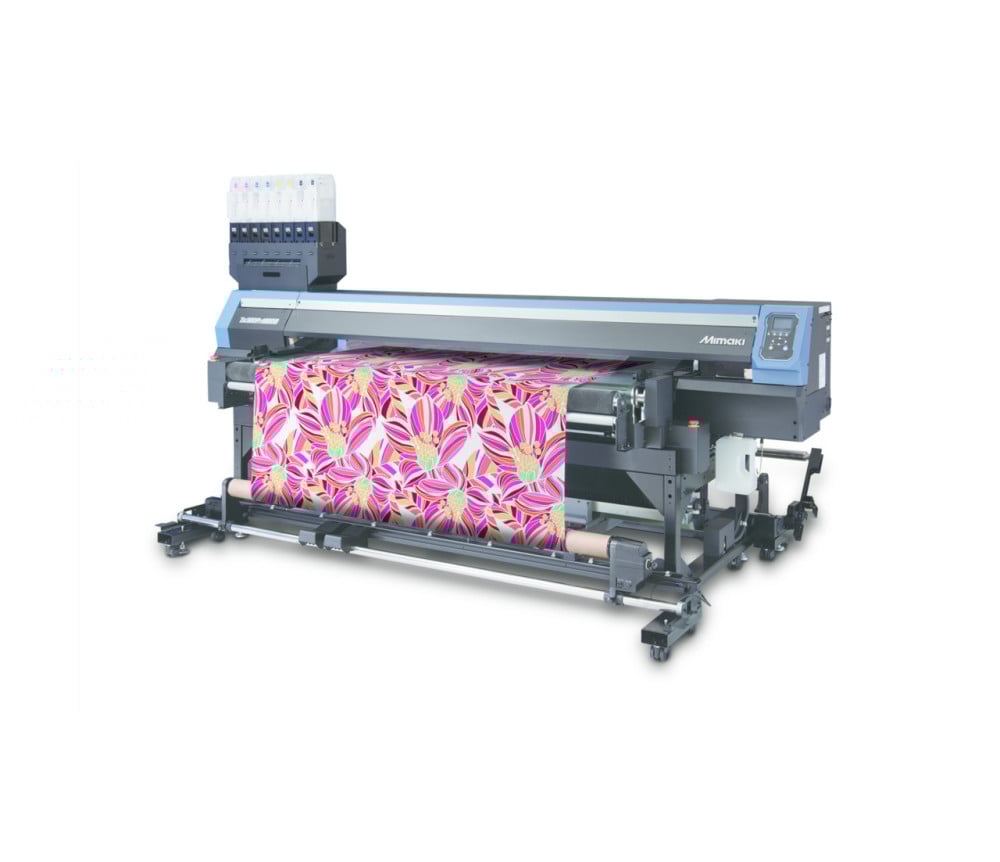

Mimaki TX300P-1800B Printer

The 77-inch wide, Direct to Textile  TX300P-1800B printer is the Ultimate in On-Demand Production for roll-to-roll textile printing, offering new levels of quality and productivity for digital textile printing where sheer, knit and 2 /4way stretch material is used. This textile printer was specifically engineered to meet the latest market needs in entry-level textile applications. Designed with reliable textile feeding via a belt conveying system, paste roller and crumple-free roller, it also includes a high gap printhead that is unaffected by thick textiles and raised fiber surfaces, while maintaining extremely high quality output. High print speeds of up to 581 SqFt/Hr can be achieved in four-color mode.
 TX300P-1800B Spec Sheet

Looking for Pricing

After 30 years in business, ITNH has strong relationships with manufacturers that allow us to negotiate not just better printer pricing, but superior packages.

Does Where You Buy Your Printer Matter?

Once you purchase a printer, you will be dependent on the reseller for training, service and everything in between. That’s why the reseller you buy your printer from is just as important as the printer itself.

We know how important it is to have a reliable, responsive printing partner. Here's why you should contact us for a quote for your next printer:

  • More Than Just a Reseller
    We’re here for all of your printer needs. Our field technicians and specialists are located all across the country, ready to support you with everything from planning and installation to implementation and support.
  • Unmatched Industry Expertise
    We’ve seen it all in our nearly 30 years of experience and over # printers sold. You can rely on us as your go-to printer partner — from the research and consulting phase to continued service and upgrades. Whatever you need, we’ve got your back.
  • No Surprises
    With ITNH, what you see is what you get. We go the extra mile to set expectations for our customers from the get-go, providing full transparency on costs, capabilities and equipment needs.
  • All-Inclusive Training
    When you partner with us, you have full access to our comprehensive training services, and we’ll do everything possible to ensure that you’re comfortable with your new equipment.
  • Competitive Prices
    As a high-volume reseller with decades-long relationships with printer manufacturers, we’re able to offer our customers the most competitive prices and superior printer packages in the industry.
Mimaki TX300P-1800B Applications
  • Commercial Decor
  • Fashion Apparel
  • Flags
  • Home Decor
  • Soft signage
  • Sports Apparel
  • Technical Textiles
Fiber Types
  • Cotton
  • Linen
  • Modal
  • Nylon
  • Polyester
  • Rayon
  • Silk
Fabric Construction Types
  • Knit
  • Non-Woven
  • Woven
Mimaki TX300P-1800B Features & Benefits

Media handling system:

 Reliable belt conveying mechanism including front and rear tension bars, paste roller and crumple-free roller,  ensures stable textile transportation for providing quality printing.

 High gap printhead:

While maintaining high-quality printing, high gap settings of the printhead allow printing on not only thick textiles but also various woven patterns or raised fiber surfaces.

Production print speeds:

The TX300P-1800B printer delivers high productivity with print speeds of up to 710 square feet per hour in four-color mode. Print speeds of up to 376 square feet  per hour can be achieved in six-color mode.

New Inks:

Mimaki offers five ink types—sublimation, dispersant, pigment, reactive, and acid—to meet various application needs. For providing affordable ink prices, inks are packed in large volume packs (2 liters) and can be installed to MBIS3.

Workflow enhancements:

The TxLink3 Lite RIP Software offers simple RGB and CMYK color replacement on raster and vector data, as well as the ability to produce different color patterns. Moreover, various color replacement functions can represent desired colors.

Mimaki TX300P-1800B Specifications
Weight 1382.0000
Color Blue & Black
Schedule a Remote Demo Yes
Ink Type Textile
Printing Resolutions 360, 540, 720, 1080, 1440
Max Print Width 74"
Max Print Speed 581sq/ft/hr
Max Media Weight 88lbs
Connectivity USB 2.0, High -Speed / Ethernet 1000Base-T
Power Supply Single-phase AC 100-120V (AC 220-240V), printer only
Operational Environment Temperature "Temp: 68˚– 86˚F (15˚– 30˚C) 35-65% RH
Overall Length 75.2"
Overall Width 125.3"
Dimensions (W x D x H) 125.3 x 75.2 x 72.5 in
Why We Recommend Mimaki TX300P-1800B
  • Direct to Textile printer with Belt Conveying System for Sheer, Knit and 2/4 way stretch fabric
  • 77-inch (1950 mm) width
  • Productivity of up to 581 SqFt/hr
  • New Dye-Sublimation, Pigment, Reactive and Acid inks with improved stability
  • Two liter link bottles for all colors
  • Variable dot printing for exceptional image quality
  • MAPS4 for smooth images
  • Nozzle Check Unit and Nozzle Recovery System
  • Ethernet and email notification
