The EFI PRO 30h Proves its Dominance – A Case Study
Since its first shipment in 2022, The EFI™ Pro 30h has seen significant market adoption. And with good reason. This 3.2-meter hybrid flatbed/roll-fed LED production printer offers the ultimate in flexibility with its capability of printing roll-to-roll, flexible sheets, and rigid substrates in a single footprint. With fast changeover from flexible to rigid materials, the hybrid features of the Pro 30h printer offer cost-effective productivity and are ideal for providing a wide variety of applications to your customers – all at a very attractive price point. And that’s just for starters.
Product updates

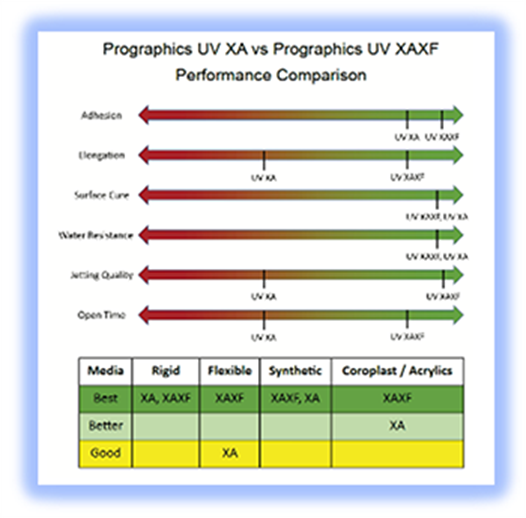

New EFI ProGraphics Series LED ink set available EFI has introduced a new ProGraphics™ Series LED ink set for the EFI Pro 30h printer. EFI ProGraphics LED XA XF inks are more flexible than the ProGraphics XA inks, expanding the range of substrates and applications. Most colors have a longer shelf life, as well as improved jetting performance and sustainability, reduced sensitivity to environmental variations, and better overall performance.
The EFI ProGraphics LED XA XF inks are the default ink set when ordering a new Pro 30h printer, and the ProGraphics LED XA inks are available as an option.
EFI Pro 30h printers in the field can upgrade to the ProGraphics LED XA XF ink. However, the ink is not top loadable, and a service visit is required. The white ink is the same for both sets, so only the CMYK inks will be converted. It also requires a different profile for Fiery XF, available using the Fiery XF Profiles Updater.
EFI ProGraphics LED Inks are GREENGUARD and GREENGUARD Gold Certified
Our GREENGUARD and GREENGUARD GOLD certified EFI ProGraphics Series UV LED inks meet UL’s rigorous standards for low-level emissions of volatile organic compounds (VOCs) intended to reduce indoor air pollution and the risk of chemical exposure. The GREENGUARD Gold certification indicates that the inks meet the highest level achievable for health-based chemical emissions criteria, requiring lower total VOC emission levels, ensuring that products are acceptable for use in sensitive environments, such as schools and healthcare facilities.
See why LightAir of Lyon, France, purchased the EFI Pro 30h hybrid printer to meet their customers’ needs for quality, durability, and versatility.
Discover how the EFI Pro 30h printer’s cost, throughput and capacity helped AlphaGraphics West Houston expand beyond its traditional customer base.
Read how the EFI Pro 30h printer offers the production speed ABYPrint needs to stay ahead of the competition, as well as the flexibility and high quality required for their customized services.
Win every time: Pro 30h vs HP Latex R2000 Plus
The key advantages of the EFI Pro 30h hybrid UV LED printer over the HP Latex R2000 Plus:
The Pro 30h printer’s ability to print on almost any substrate, versus the limited set of latex approved media you get with the R2000
00% lower energy consumption, which makes the Pro 30h the real green alternative
Lower TCO
Learn more here
Advantages of EFI Pro 30h over others or imported alternates.
Below are several reasons why the EFI product equipment has superior strength and value to some of the alternates.
EFI provides the best Ricoh Heads manufactured. They are thoroughly inspected to meet our standards.
EFI builds the Jet Plate which provides much better placement and repeatability of each head.
EFI replaces and provides “Best of Class” components manufactured in USA, Japan, Germany.
EFI experienced engineers work together with electronics, Jets, Curing System, and Mechanical operations of the printer to ensure highest quality and consistent built.
EFI Ink chemists work together with the engineering team to optimize the ink adhesion, quality, and consistency to each printer design to ensure the best results and highest reliability of the heads.
EFI provides hardware, firmware, and software to add and optimize the capabilities of the components and jets used. Voltage setting, ink firing instructions, Wave form, etc. which provide much more consistency imaging from job to job, and large jobs eliminating and greatly reducing jet out and artifacts in prints. This provides great sustainability of the product, reducing maintenance and service calls on the printer.
EFI provides Ink jet head replacement as part of our warranty. First year up to 4 heads.
Dual touch screen monitors built into the printer for front and back operations. All functionality can be controlled from either side allowing the operator to be much more efficient.
Continuous Feed Board option. This feature will greatly enhance the efficiency of productivity between boards of multi board job.
Printer Width: 3.2M wide (126 inches). This allows you to run multiple rolls at one pass or run roll widths of 3.2M (10ft) wide with no limitation. It will also allow you to run multiple standard boards in one pass.
Printer has an enclosed design with hood and covers. This maintains less dust, temperature and humidity control within the printer electronics and print area versus an open system. Also safer for operations with less exposure to moving components and direct UV lamp exposure. Also, the printer has 8 ceiling fans and customers could add an air duck on top of the printer to extract out any fumes in case the customer has a tight place or not enough air recirculation/replacement for a healthier work environment.
Vacuum for operation is self-contained. Vacuum requirement minimal to control bladder on roll option if chosen to use.
Redirect roller included which allows some media to run eliminating wrinkling. Maintains better tracking of longer roll lengths.
Media rollers also allow you to run warped boards by holding them flat on the belt throughout the run of the board to the tail end, greatly reducing board pop up and damage to heads.
Pin and registration option to run two sided boards from right and left side of printer. This ensures the same zero point which results in perfect registration.
Fiery XF Pro Server included. Also includes the software licenses/options to run color profiler, cut marks option, pantone option, step and repeat, multi-layer running various options with white ink as well as up to five-layer in single pass for perfect registration, improved productivity, etc.
EFI Ink Set: XA XF Ink Set. This is the best ink offering in the market. Greatly enhances the ability to run various materials with great adhesion. Also provide rigid and flexible ink type to eliminate cracking, chipping and allow flexibility on material ran in roll.
If you need any additional information or have questions feel free to email Kevin Brit, ITNH’s EFI large format specialist at [email protected] or call him at 973.507.6552.
Need more advice? Looking for a personalized consultation? Get in touch with us at ITNH. We’re here to help you navigate the world of print business effectively and efficiently.
