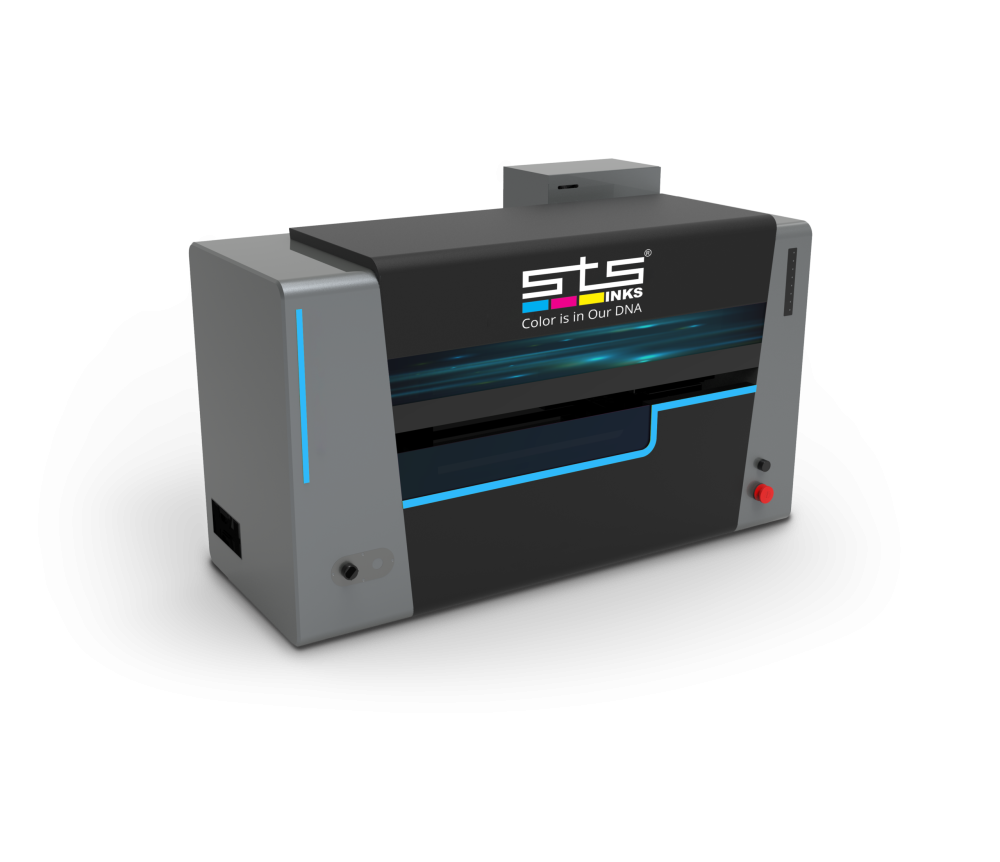

STS C-3 Cylindrical UV Printer

The STS C-3 is a cylindrical UV printer that puts full-color designs directly onto bottles, tumblers and other round or tapered products, no wraps or transfers required. You load the item, and the printer measures its shape, adjusts on its own and prints. The setup is simple, even for newer operators. The UV-cured ink dries as it prints and stands up to regular handling, which makes the C-3 a good fit for shops producing custom drinkware in-house.

  STS C-3 Data Sheet

Looking for Pricing

After 30 years in business, ITNH has strong relationships with manufacturers that allow us to negotiate not just better printer pricing, but superior packages.

Get Pricing or Call 603-637-1758
Want More Information on This Printer?
Order a Printed Sample from this Printer
View Current Printer Promotions
Request Financing
10 Questions to Ask Before Buying
Save for Later Questions
Applications Features Specifications Buying Guide Get Pricing 603-637-1758
Does Where You Buy Your Printer Matter?

Once you purchase a printer, you will be dependent on the reseller for training, service and everything in between. That’s why the reseller you buy your printer from is just as important as the printer itself.

We know how important it is to have a reliable, responsive printing partner. Here's why you should contact us for a quote for your next printer:

  • More Than Just a Reseller
    We’re here for all of your printer needs. Our field technicians and specialists are located all across the country, ready to support you with everything from planning and installation to implementation and support.
  • Unmatched Industry Expertise
    We’ve seen it all in our nearly 30 years of experience and over # printers sold. You can rely on us as your go-to printer partner — from the research and consulting phase to continued service and upgrades. Whatever you need, we’ve got your back.
  • No Surprises
    With ITNH, what you see is what you get. We go the extra mile to set expectations for our customers from the get-go, providing full transparency on costs, capabilities and equipment needs.
  • All-Inclusive Training
    When you partner with us, you have full access to our comprehensive training services, and we’ll do everything possible to ensure that you’re comfortable with your new equipment.
  • Competitive Prices
    As a high-volume reseller with decades-long relationships with printer manufacturers, we’re able to offer our customers the most competitive prices and superior printer packages in the industry.
STS C-3 Applications
  • Barware
  • Bottles
  • Candle Jars
  • Cosmetic containers
  • Drinkware
  • Promotional Products
  • Thermoses
  • Tumblers
  • Water bottles
  • Wine & Spirits
Common Substrates
  • Aluminum
  • Ceramics
  • Glass
  • Plastics
  • Powder-coated meta
  • Stainless steel
STS C-3 Features & Benefits
  • Three Epson i1600 printheads for opaque coverage on clear and colored surfaces, with CMYK plus white and varnish
  • Tapered and irregular products stay in register thanks to laser shape measurement
  • >Resolution ranges from 720 to 2880 DPI, sharp enough for logos, photos and fine detail
  • Variable ink drop technology shifts drop size on the fly for smooth gradations at speed
  • Because LED UV curing sets the ink instantly, designs resist scratching and daily wear
  • Fits diameters from 2.16 to 7.08 inches and print lengths up to 9.44 inches
  • Automatic bottle detection reads each item and adjusts the settings, so there's no manual measuring



STS C-3 Specifications
Weight 6173.0000
Ink Type Eco UV curing ink
Printing Resolutions 720 to 2880 DPI
Interface High-speed USB 3.0
Dimensions (W x D x H) 52.7 x 18.9 x 28.74 in
Printhead Epson i1600
Number of Printheads 3
Print size Length up to 9.44 in, diameter 2.16 to 7.08 in, 12 in taper
Curing system LED UV
File formats TIFF, JPEG, EPS, PDF and more
Ink mode CMYK + White + Varnish
Ink system Siphon positive-pressure ink supply
Rated power 1300W
RIP software CADlink, FlexiPRINT, Inedit
Voltage AC 110V +/- 10%
Operating environment 57°F to 86°F, 30% to 70% RH
Why We Recommend STS C-3
  • One machine replaces screens, wraps and heat transfers, so you can print short runs and one-offs on demand
  • Automatic sizing means new operators can use it without a big learning curve
  • White ink and a scratch-resistant UV finish hold up to daily handling, reducing returns and reprints
